Single rate three color meter

The single rate three color meter is typically used for implementing the corresponding three color marker defined in [RFC2697]. Its configuration is shown in figure 2.4.

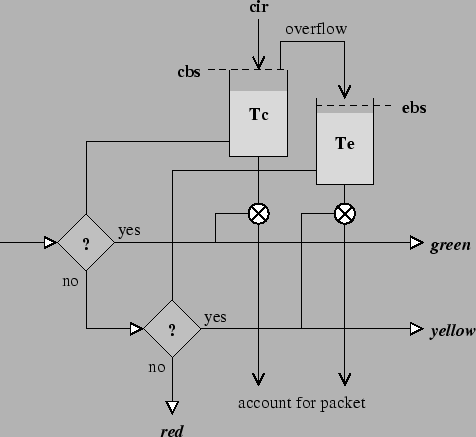

Figure 2.4: Single rate three color meter.

Also this meter is created with a macro whose names corresponds to the meter's acronym, e.g.

$tcm = srTCM(cir 1Mbps,cbs 50kB,ebs 40kB);

srTCM has the following parameters:

Parameter	Unit	Description
cbs	Bytes	Committed burst size
cir	bps	Committed information rate
ebs	Bytes	Extended burst size
mpu	Bytes	Minimum policed unit

Only mpu is optional, all other parameters are required.

The color assigned by a three color meter is tested with macros meter_color, where color is one of green, yellow, and red.

Example:

#include "fields.tc"
#include "meters.tc"

$m = srTCM(cir 1Mbps,cbs 100kB,ebs 40kB);
...
    class if ip_dst:8 == 10.0.0.0 && srTCM_green($m);
    class if ip_dst:8 == 10.0.0.0 && srTCM_yellow($m);
    class if ip_dst:8 == 10.0.0.0 && srTCM_red($m);
...
