IPv4 header

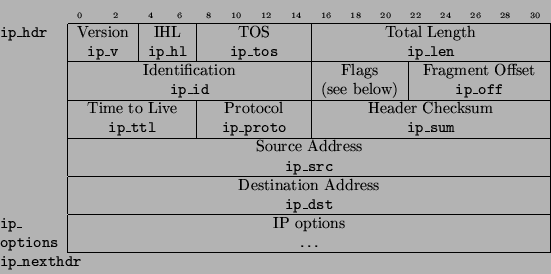

The following fields are defined for the IP version 4 header, as described in [RFC791]:


\begin{displaymath}
\begin{tabular}{l\vert cccccccccccccccccccccccccccccccc\vert...
...2-33}
\multicolumn{33}{l}{{\tt ip\_nexthdr}} \\
\end{tabular}\end{displaymath}

The definition of the ip_tos octet2.4revised, and is now called the ``Differentiated Services field''. The corresponding definitions are described in section 2.13.2. Additional convenience fields for the traditional and now deprecated use of ip_tos are described in section 2.13.2.

Note that ip_src and ip_dst are of type ``IPv4 address''.

The following flags are used for handling IP fragments:
