TCP connections

tcp_incoming is non-zero if the packet is the SYN segment of an incoming TCP connection. Note that ``incoming'' is from the perspective of the classifier, i.e. tcp_incoming is non-zero if the connection is being set up in the same direction in which the current packet is traveling, as shown in figure 2.1.

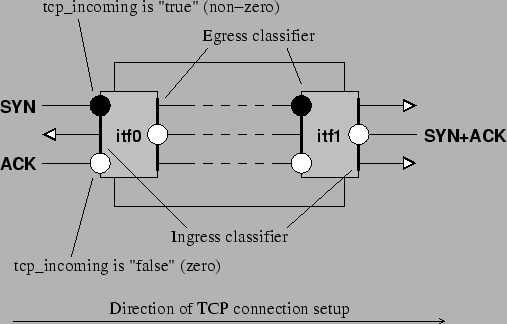

Figure 2.1: Result of tcp_incoming.
\begin{figure}\begin{center}
\epsfig{file=incoming.eps}\end{center}\end{figure}

The macro not_tcp_incoming is the negation of tcp_incoming.
